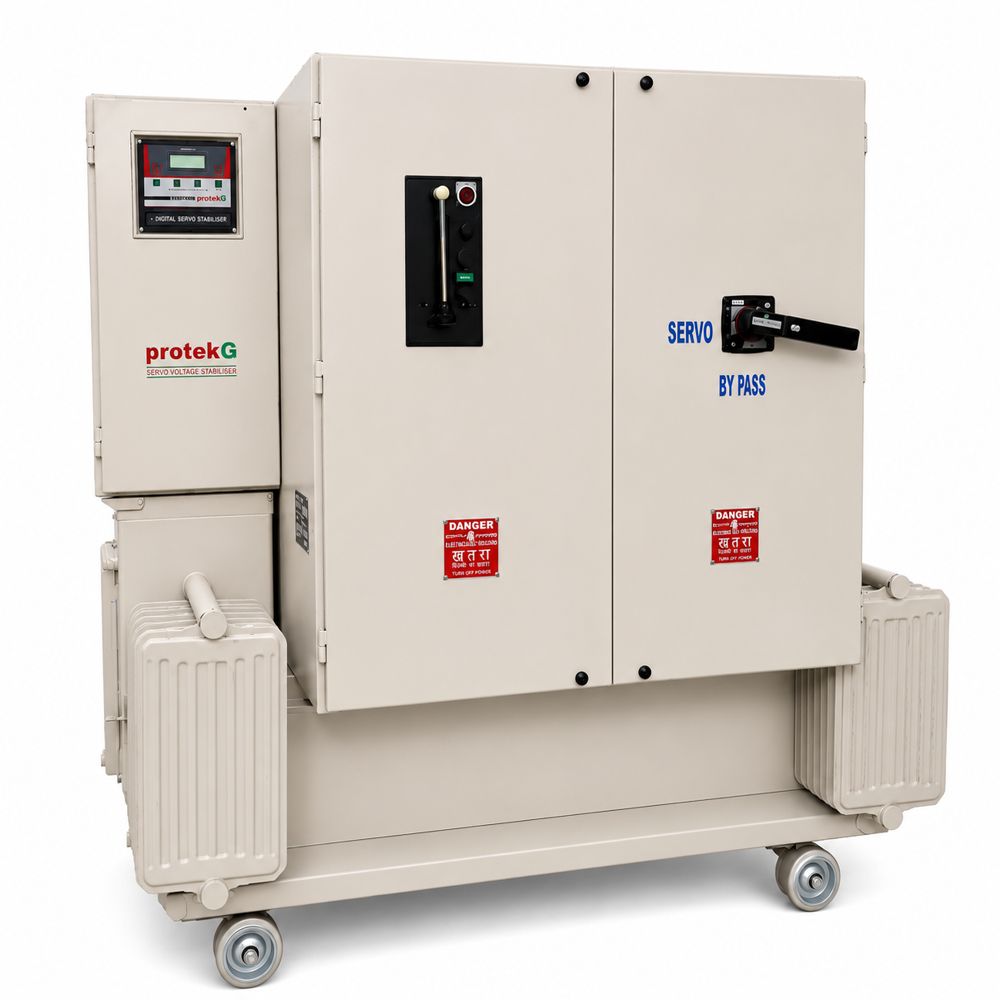

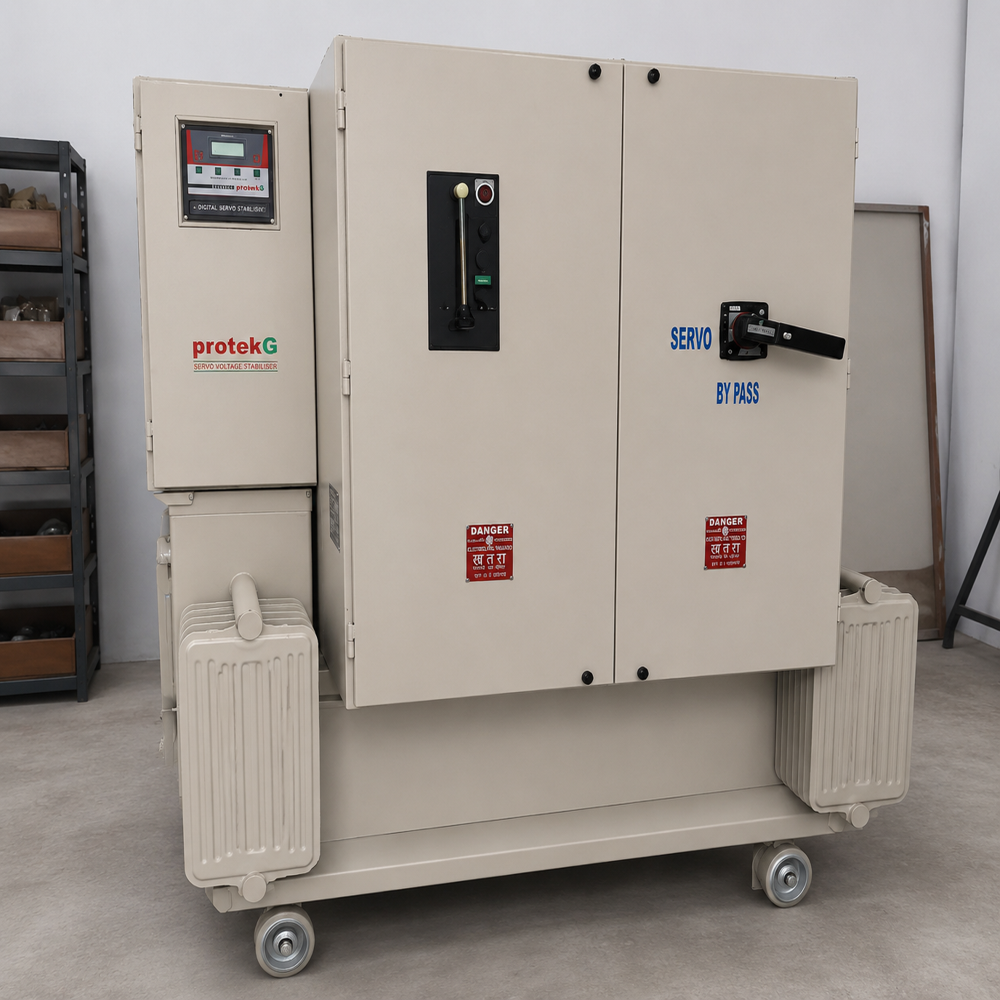

Three Phase Servo Voltage Stabilizer 350 KVA

Send Inquiry

Request To Call Back

Three Phase Servo Voltage Stabilizer 350 KVA

Name: Three Phase Servo Voltage Stabilizer 350 KVA
Brand: PROTEKG POWER ELECTRONICS PRIVATE LIMITED
Price: 640000 INR
Availability: InStock

Price 640000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Three Phase Servo Voltage Stabilizer 350 KVA Specification

Output Current
Max 486A

Input Voltage
250-500V, 300-500V, 340-480V, 360-460V

Output Voltage
415 Volt (V)

Efficiency
>98%

Frequency (MHz)
50Hz

Phase
Three Phase

Warranty
2 Years

Current
~486A (based on 350kVA/415V)

Weight
Approx. 1400 kg

Ambient Temperature
0C to 50C

Degree of Protection
IP21

Control System
Digital & Microprocessor Based

Usage
Industrial/Commercial Equipment Protection

Design
Oil Cooled

Insulation Resistance
>2 Mega Ohms

Voltage Protection
High/Low Voltage, Overload, Neutral Failure, Single Phasing, Surge/Spike

Display
Other

Dimension (L*W*H)
1550*1520*1550 Millimeter (mm)

Rated Power
350 kVA

Current Type
AC

Waveform Distortion
Negligible (1%)

Product Type
Automatic Three Phase Servo Voltage Stabilizer

Cooling Type
Oil cooled

Max Surge Protection
Included

Color
Grey

Mount Type
Floor Mounted

Suitable for
Continuous Operation

Oil Type
BS:335 Std Transformer

Input Cable Entry
Bottom Side

Input Switch
MCCB

Overload Capacity
120%

Output Switch
Bypass Changeover

Three Phase Servo Voltage Stabilizer 350 KVA Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque

Main Export Market(s)
Asia

Main Domestic Market
All India

About Three Phase Servo Voltage Stabilizer 350 KVA

Phase:Three Phase
Power:350 kVA
Type:Automatic
Display:Digital & Micro-processor based
Output Voltage:415 +- 1% Volts
Input Voltage:360-460, 340-480V, 300-500,
250-500 Volts
Over Load Capacity:120%
Input:MCCB
Output:Bypass changeover Switch
Oil:BS:335 Standard Transformer Oil
Protections:Single phasing, HighVoltage,Low Voltage, Overload Current, Neutral Failure Protections, Spike/Surge Protection

Continuous High-Performance Voltage Regulation

Engineered for industrial and commercial settings, this 350 KVA servo voltage stabilizer ensures reliable operation of vital equipment through precise voltage control. Its advanced microprocessor-based system and digital controller swiftly adapt to voltage fluctuations, safeguarding connected machinery while delivering exceptional efficiency and negligible waveform distortion.

Advanced Protection with Hassle-Free Maintenance

Built with comprehensive voltage, overload, neutral, surge, and single phasing protections, the stabilizer maximizes uptime and minimizes risk to valuable assets. The inclusion of a bypass changeover output switch and MCCB input switch simplifies maintenance procedures, allowing for safer interventions and smoother operations.

FAQ's of Three Phase Servo Voltage Stabilizer 350 KVA:

Q: How does the Three Phase Servo Voltage Stabilizer maintain a constant output voltage?

A: The stabilizer utilizes a digital and microprocessor-based control system to automatically monitor and adjust the output voltage. It compensates for input voltage fluctuations within the 250-500V, 300-500V, 340-480V, or 360-460V range to ensure a steady 415V output, thereby protecting sensitive equipment from disturbances.

Q: What makes this stabilizer suitable for continuous operation in industrial environments?

A: It is designed with an oil-cooled system, BS:335 standard transformer oil, robust overload handling (up to 120%), and high efficiency (>98%), enabling continuous, reliable service. Its IP21 protection ensures safety against ingress of solid objects, making it ideal for heavy-duty industrial or commercial use.

Q: When is surge protection activated in the stabilizer?

A: Surge protection is continuously active, automatically engaging when high-voltage surges or spikes are detected. This feature shields your connected equipment from unexpected electrical events, thus reducing the risk of damage and downtime.

Q: Where should the input cable be connected for installation?

A: The input cable entry is located at the bottom side of the unit, facilitating safe and organized cabling during installation. This design supports straightforward floor-mounted setup and easy integration into existing electrical infrastructure.

Q: What are the benefits of the included bypass changeover output switch?

A: The bypass changeover output switch allows for quick transition of the load between stabilized and direct line supply, facilitating equipment maintenance or replacement without interrupting power to the critical load, thus minimizing operational disruptions.

Q: How can users monitor and handle overload situations with this stabilizer?

A: The stabilizer is equipped with overload protection, and operators can easily supervise overload status through digital indicators. If an overload condition occurs (up to 120% rated capacity), the system will automatically manage the load or can be manually reset, safeguarding connected appliances.
