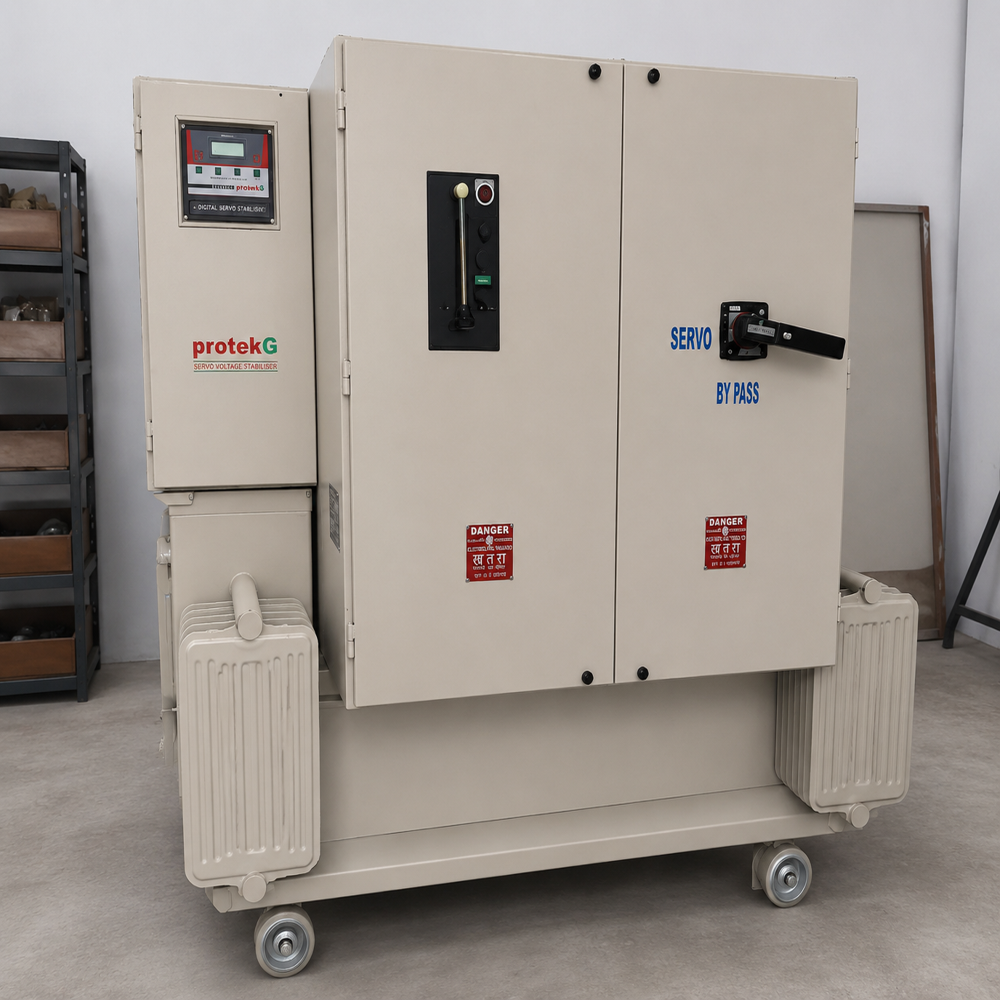

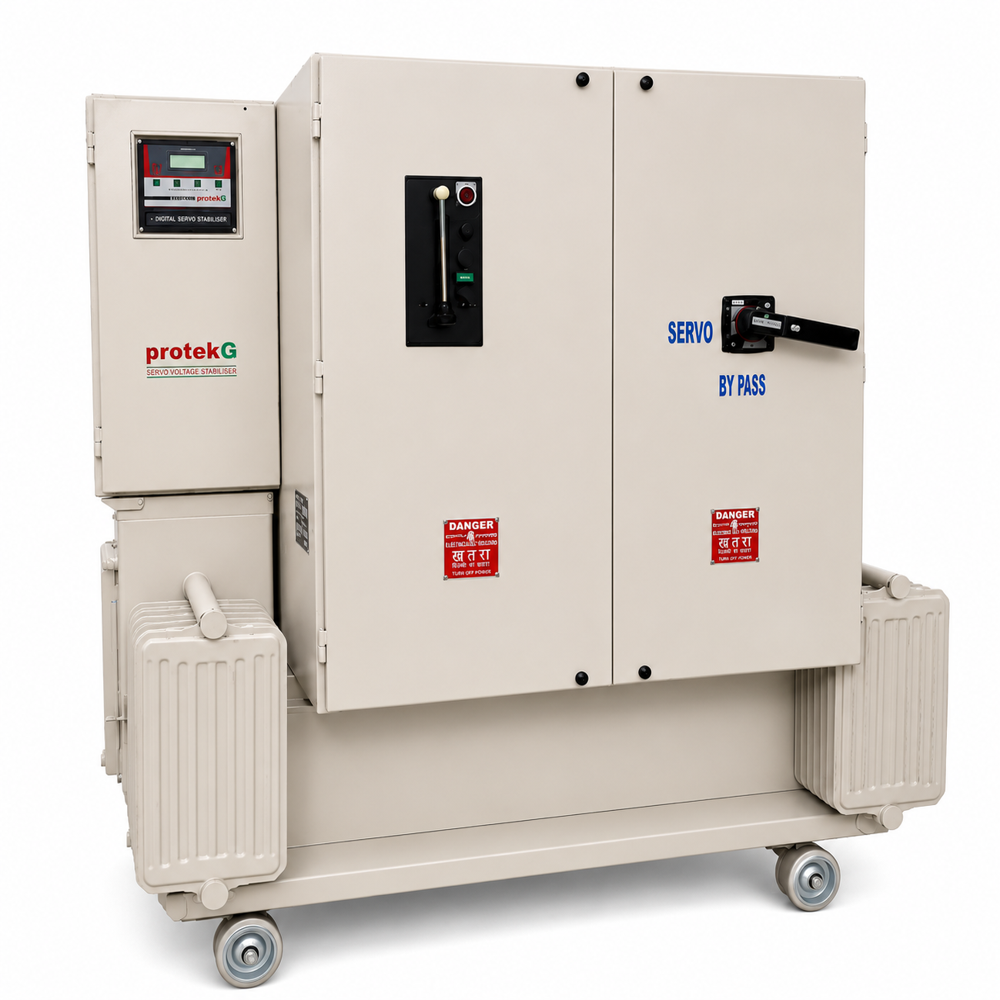

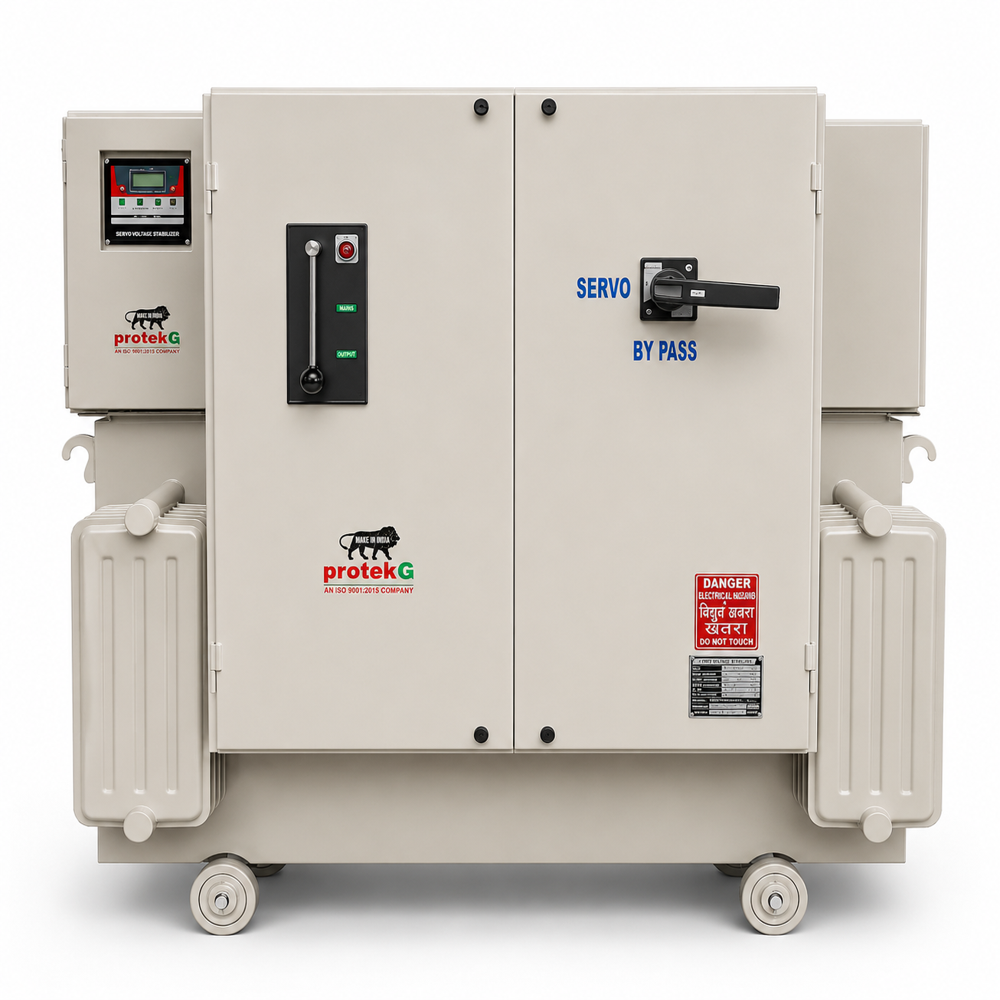

1000 kVA Servo Voltage Stabilizer

Name: 1000 kVA Servo Voltage Stabilizer
Brand: PROTEKG POWER ELECTRONICS PRIVATE LIMITED
Price: 1694915 INR
Availability: InStock

Price 1694915 INR/ Number

Get a Price/Quote

MOQ : 1 Number

1000 kVA Servo Voltage Stabilizer Specification

Input Voltage
250-500 Volt (V)

Output Voltage
415 Volt (V)

Efficiency
98%

Frequency (MHz)
As per Input Hertz (HZ)

Phase
Three Phase

Warranty
2 Years

Current
AC

Weight
1500 Kilograms (kg)

Ambient Temperature
52 Celsius (oC)

Control System
Automatic

Usage
Other

Display
LCD

Rated Power
1000 kVA

Current Type
AC

Waveform Distortion
NIL

Product Type
Industrial

About 1000 kVA Servo Voltage Stabilizer

Product details

Minimum Order Quantity:1 Unit
Brand:protekG
Phase:Three Phase
Power:1000 kVA
Type:Automatic
Display:Digital & Micro-processor based
Output Voltage:415 +- 1% Volts
Input Voltage:360-460, 340-480V, 300-500, 250-500 Volts
Over Load Capacity:120%
Input:MCCB
Output:Bypass changeover Switch
Oil:BS:335 Standard Transformer Oil
Protections:Single phasing, High Voltage,Low Voltage, Overload Current, Neutral Failure Protections, Spike/Surge Protection

Superior Voltage Regulation for Industrial Needs

Designed for industries and businesses with high power demands, the 1000 kVA Servo Voltage Stabilizer ensures stable voltage output even with significant input fluctuations. Its three-phase design and automatic control system provide robust protection for sensitive machinery, safeguarding against electrical damage and downtime.

Advanced Features for Maximum Reliability

This stabilizer incorporates an LCD display for clear status monitoring, minimal waveform distortion, and a wide input voltage range. With its impressive efficiency and heat tolerance up to 52C, it delivers reliable operation in challenging conditions. The 2-year warranty affirms the product's durability and quality.

FAQ's of 1000 kVA Servo Voltage Stabilizer:

Q: How does a 1000 kVA Servo Voltage Stabilizer benefit my industrial setup?

A: This stabilizer provides consistent voltage output, protecting essential machinery from damage caused by voltage fluctuations. Its 98% efficiency and NIL waveform distortion ensure optimal performance, reducing maintenance needs and enhancing the lifespan of sensitive equipment.

Q: What is the operating process of this Servo Voltage Stabilizer?

A: The device automatically senses incoming voltage levels and adjusts its internal circuitry to stabilize the output at 415V using servo mechanisms. This process guarantees uniform voltage for connected three-phase equipment without manual intervention.

Q: When should I consider installing a 1000 kVA Servo Voltage Stabilizer?

A: Installation is recommended when your operations rely on large AC loads or machinery sensitive to voltage variations, especially in areas with unstable power supply or frequent voltage fluctuations.

Q: Where can this servo stabilizer be used most effectively?

A: This device is ideal for use in factories, commercial centers, and large industrial complexes where continuous and stable power is critical. Its robust construction ensures suitability for various environments, including locations with high ambient temperatures.

Q: What are the usage requirements for the 1000 kVA stabilizer?

A: Ensure that the input voltage lies between 250-500V AC and the stabilizer is installed in a ventilated space that can accommodate its weight (1500 kg). Regular monitoring through the LCD display is recommended for optimal operation.

Q: How does the automatic control system enhance the stabilizer's performance?

A: The automatic system measures real-time voltage fluctuations and swiftly adjusts the internal voltage correction components, providing seamless voltage regulation with minimal human intervention. This results in more reliable and safer operation.
