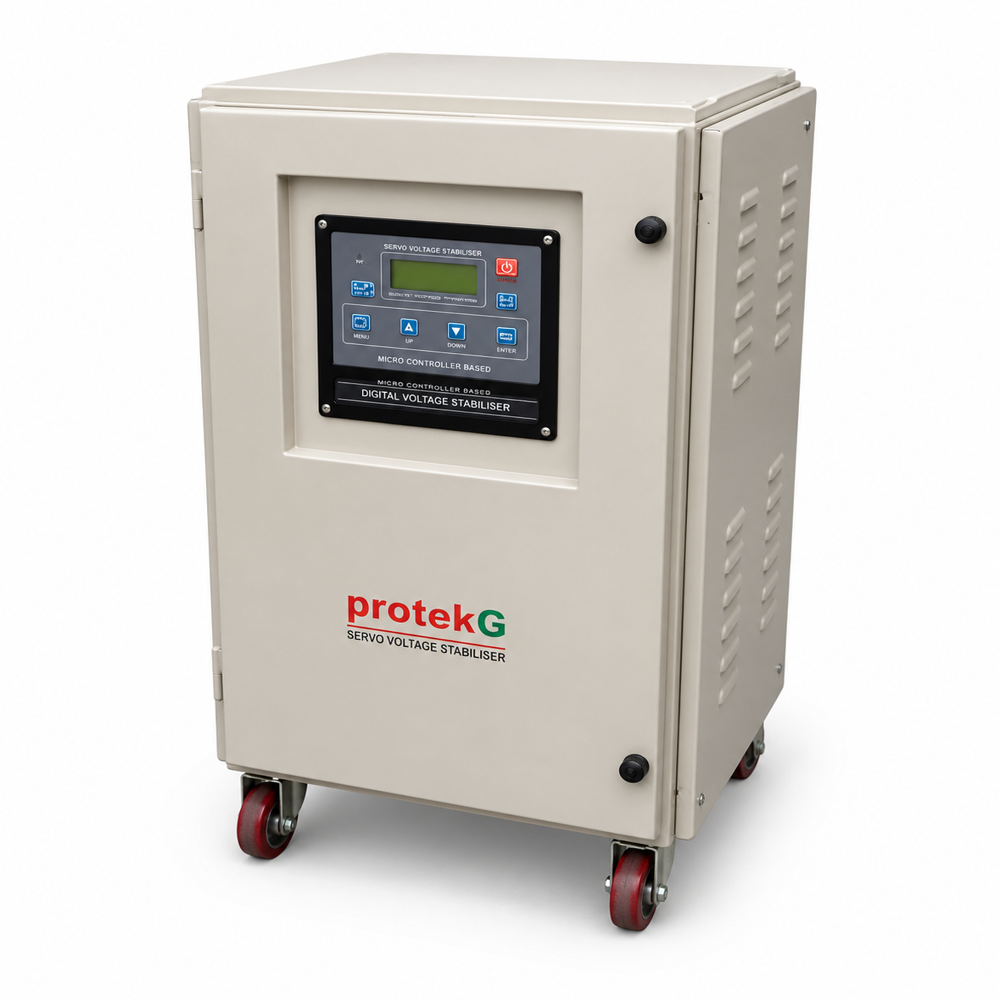

Single Phase Automatic Voltage Controller

Name: Single Phase Automatic Voltage Controller
Brand: PROTEKG POWER ELECTRONICS PRIVATE LIMITED
Price: 46150.0 INR
Availability: InStock

Price 46150.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Single Phase Automatic Voltage Controller Specification

Output Current
Up to 22A

Input Voltage
140V - 270V AC

Output Voltage
230V AC

Efficiency
Above 95%

Frequency (MHz)
47-53 Hz Hertz (HZ)

Phase
Single Phase

Warranty
1 Year

Current
22A

Weight
18 kg

Ambient Temperature
0C to 50C

Degree of Protection
IP20

Control System
Microprocessor Based

Usage
Industrial

Insulation Resistance
Greater than 2 M

Design
Compact and Rugged

Voltage Protection
Under & Over Voltage Protection

Display
Other

Dimension (L*W*H)
440 mm x 290 mm x 220 mm

Rated Power
5 kVA

Current Type
AC

Waveform Distortion
Negligible/None

Product Type
Single Phase Automatic Voltage Controller

Suitable For
Sensitive Electronic Equipment

Regulation
1%

Mounting Type
Floor/Wall Mounted

Input/Output Terminals
Heavy Duty Copper Terminals

Service Life
More than 10 Years

Cooling
Air Cooled

Noise Level
Silent Operation

Enclosure Material
Powder Coated Metal

Overload Protection
Provided

Indications
LED Indicator for Operation Status

Relative Humidity
Up to 95% (Non-condensing)

Short Circuit Protection
Provided

Control Accuracy
High Precision

Correction Speed
35 Volts/sec

Single Phase Automatic Voltage Controller Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

About Single Phase Automatic Voltage Controller

Product Details:

Minimum Order Quantity	1 Unit
Output Voltage	230 +/- 1% VAC
Brand	ProtekG
Model Name/Number	31
Input Voltage	170-270,140-300,100,300VAC
Warranty	1 YEAR
Payment Terms	Cheque or Cash
Shipping Available	Yes I Ship
Dispatch Time	Within 7 Days
Capacity	5 kVA - 75 kVA
Display Type	LCD
Type	INDOOR/OUTDOOR
Range	5KVA TO 75 KVA
Phase	Single Phase
Correction Speed	75 V/Sec
Input Frequency	47-53 Hz

Technical Specifications:

Effect Of Power Factor	Nil
Control and Monitoring	1. Micro-Controller & DSP based Electronic Card with inbuilt LCD display 2. Input L/L & L/N Voltage monitoring 3. Output L/L & L/N Voltage monitoring 4. Load current Phase wise monitoring 5. Input Line Indication
Waveform Distortion	As per the input waveform
Nature Of Cooling	Oil Cooled ( BS:335 Standard Oil )
Efficiency	> 98%
Cabinet Colour	Siemens Gray
Servo Motor Drive	Rugged AC step sychronous motor
Protections	1. Electronic over & under voltage trip with time delay for input & output 2. Electronic overload protection and short circuit protection through MCB 3. Surge Arrester(OPTIONAL) 4. Phase reversal cut off 5. Single phase prevention cut off 6. Neutral failure protection 7. Earth neutral voltage cut off protection
Output Panel	Terminated with suitable Busbar
Enclosure	Cubicle made out of 10 SWG CRCA sheet
Noise Level	< 55 DB at a distance of 1 Mtr

Request
Callback

Additional Information:

Item Code: 31
Production Capacity: 10
Delivery Time: 3 DAYS

High Precision Voltage Regulation

This controller provides outstanding voltage control with a 1% regulation accuracy, efficiently maintaining output at 230V AC. Its microprocessor-based system and high correction speed ensure real-time response to voltage deviations, making it highly suitable for sensitive industrial applications where precision is essential.

Reliable and Durable Design

Engineered with a compact, powder-coated metal enclosure and IP20 protection, the controller is designed to withstand challenging industrial environments. With service life exceeding 10 years, excellent insulation resistance, and silent operation, it ensures dependable performance with minimal maintenance costs.

Safe and User-Friendly Operation

Equipped with overload, short circuit, and under/over voltage protection, this voltage controller safeguards both equipment and personnel. The digital/LED display and LED status indicators allow for straightforward monitoring, while heavy-duty copper terminals ease secure connections during installation and operation.

FAQ's of Single Phase Automatic Voltage Controller:

Q: How does the automatic voltage controller protect sensitive equipment?

A: The controller stabilizes the output voltage to 230V AC with high precision (1% regulation) and rapid correction speed, reducing risks to sensitive electronics from voltage surges or drops. It also features built-in overload and short-circuit protection for added safety.

Q: What is the recommended installation process for this controller?

A: The device can be floor- or wall-mounted using the robust mounting options provided. Heavy-duty copper terminals allow secure wiring, and its compact dimensions (440 mm x 290 mm x 220 mm) fit most industrial setups. Ensure installation in non-condensing environments with relative humidity up to 95%.

Q: When should I use this voltage controller in an industrial setting?

A: Deploy the controller when you require stable voltage for sensitive electronic devices and machinery, particularly where input voltage fluctuates between 140V and 270V AC. It is well-suited for applications needing high precision, safety, and reliability.

Q: What are the operational benefits of its air-cooled and silent design?

A: The air-cooled system ensures efficient thermal management, extending the lifespan of the controller while maintaining silent operation. This makes it ideal for noise-sensitive workplaces and continuous operation environments.

Q: Where can I view operational status or faults?

A: Operational status and potential faults are clearly indicated via the front-panel LED indicators and the digital/LED display, providing you with immediate and accessible information about the device's performance.

Q: How long is the expected service life, and what warranty is included?

A: This voltage controller offers a service life exceeding 10 years under recommended conditions and comes with a one-year warranty covering manufacturing defects, ensuring long-term reliability.
